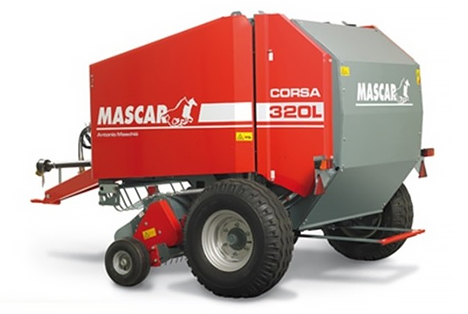

Model: MASCAR CORSA 320 i 320L

  • Chamber – Fix
  • Bale dimension cm – 120 x 120
  • Bale winding – Bars
  • Bars number – 34
  • Rpm from P.T.O g/min – 540
  • Power requirements Kw(Hp) – 30(40)
  • Total width pick-up mt – 320 – 1.7 /// 320L – 2.0
  • Bars teeth-holder each bar – 320 – 4/19 /// 320L – 4/23
  • Adjustment bale density – Mechanic 3 positions
  • Double twine and/or net binding – Standard
  • Automatic binding -Optional
  • lights installation – Standard
  • Automatic chains lubrication – Optional
  • Standard tyres  – 320 -10.0/75-15 /// 320L –  11.5/80-15
  • Optional tyres  320 – 11.5/80-15 o /// 320L – 15.0/55-17
  • Comb-feeder – Alternative
  • P.T.O shaft – With safety bolt
  • Bales counter – Mechanical
  • Electric supply – 12 V
  • Hydraulic requirements – 2xSA
  • Draw-bar – Adjustable

Dimensioni Overall dimensions:

  • Width cm 230
  • Height cm 200
  • Length cm 360
  • Empty weight Kg -320 – 1850 /// 320L – 1900
