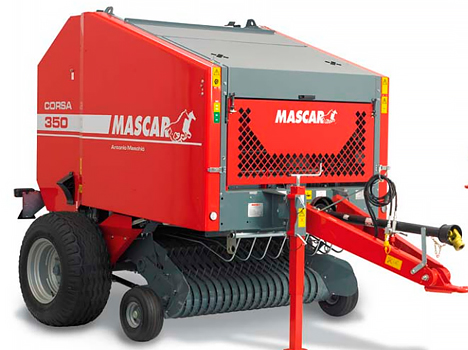

Model: MASCAR CORSA 350 i 350L
- Chamber – Fix
- Bale dimension cm – 120 x 150
- Bale winding – Bars
- Bars number – 41
- Rpm from P.T.O g/min – 540
- Power requirements Kw(Hp) – 37(50)
- Total width pick-up mt – 320 – 1.7 /// 320L – 2.0
- Bars teeth-holder each bar – 320 – 4/19 /// 320L – 4/23
- Adjustment bale density – Mechanic 3 positions
- Double twine and/or net binding – Standard
- Automatic binding -Optional
- lights installation – Standard
- Automatic chains lubrication – Optional
- Standard tyres – 11.5/80-15
- Optional tyres – 15.0/55-17
- Comb-feeder – Alternative
- P.T.O shaft – With safety bolt
- Bales counter – Mechanical
- Electric supply – 12 V
- Hydraulic requirements – 2xSA
- Draw-bar – Adjustable
Dimensioni Overall dimensions:
- Width cm 230
- Height cm 230
- Length cm 390
- Empty weight Kg -320 – 2200 /// 320L – 2250
